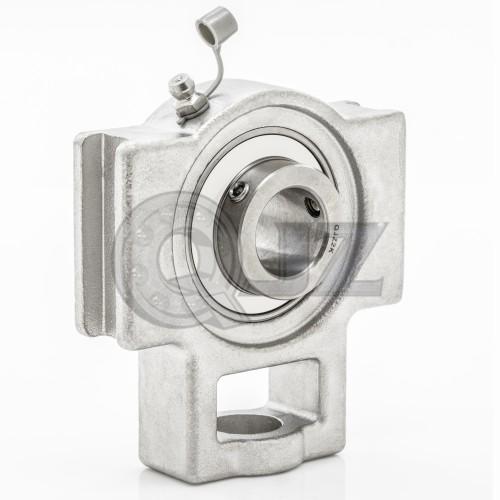

SSUCT200 Take Up Units

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 20mm 16 10 51 32 19 51 12 H1 H L A A2 L1 B1 S 76 89 94 32 21 61 31 12.7

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 0.9375in 16 10 51 32 19 51 12 H1 H L A A2 L1 B1 S 76 89 97 32 24 62 34 14.3

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 25mm 16 10 51 32 19 51 12 H1 H L A A2 L1 B1 S 76 89 97 32 24 62 34 14.3

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 30mm 16 10 56 37 22 57 12 H1 H L A A2 L1 B1 S 89 102 113 37 28 70 38.1 15.9

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 1.3125in 16 13 64 37 22 64 12 H1 H L A A2 L1 B1 S 89 102 129 37 30 78 42.9 17.5 ...

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 35mm 16 13 64 37 22 64 12 H1 H L A A2 L1 B1 S 89 102 129 37 30 78 42.9 17.5

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 0.875in 16 10 51 32 19 51 12 H1 H L A A2 L1 B1 S 76 89 97 32 24 62 34 14.3

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 1in 16 10 51 32 19 51 12 H1 H L A A2 L1 B1 S 76 89 97 32 24 62 34 14.3

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 1.25in 16 10 56 37 22 57 12 H1 H L A A2 L1 B1 S 89 102 113 37 28 70 38.1 15.9 ...

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 1.1875in 16 10 56 37 22 57 12 H1 H L A A2 L1 B1 S 89 102 113 37 28 70 38.1 15.9 ...

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 1.125in 16 10 56 37 22 57 12 H1 H L A A2 L1 B1 S 89 102 113 37 28 70 38.1 15.9 ...

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 0.75in 16 10 51 32 19 51 12 H1 H L A A2 L1 B1 S 76 89 94 32 21 61 31 12.7

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 1.4375in 16 13 64 37 22 64 12 H1 H L A A2 L1 B1 S 89 102 129 37 30 78 42.9 17.5 ...

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 1.25in 16 13 64 37 22 64 12 H1 H L A A2 L1 B1 S 89 102 129 37 30 78 42.9 17.5 ...

Dimensions (mm) d N1 L2 H2 N2 N L3 A1 1.375in 16 13 64 37 22 64 12 H1 H L A A2 L1 B1 S 89 102 129 37 30 78 42.9 17.5 ...
